YK330 YIKUAI plasma torch and consumable:

Features:

The most core technical feature of the YK330 torch is its dual water-cooling design for both the electrode and nozzle. Compared to traditional single water-cooling or air cooling, this design significantly reduces the temperature of key consumable parts, thereby greatly extending their service life.

At the same time, it optimizes the gas path compression ratio design, resulting in more concentrated arc energy and a more stable arc column. This produces a straighter, smoother, and finer cut surface, reducing the amount of subsequent grinding work required.

Parameters:

The suggestion cutting marameters：

Please change the nozzle and electrode when the following situation occurs:

1.Cutting gap become larger

2.Cann't start the arc

3.Cutting area color getting much abnormal

4.Arc distinguish

5.Cutting speed suddenly decrease

6.Cutting nozzle getting seriously burned

7.Cutting nozzle melted on the work-piece

8.The electrode center sunk up to 2mm

The torch consumables details and size:

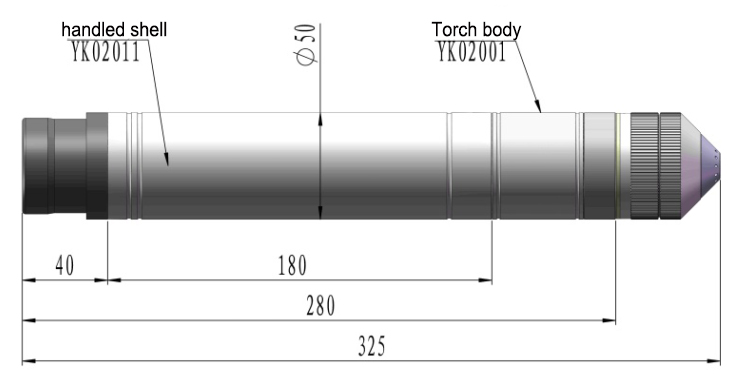

1)The YK330 torch size:

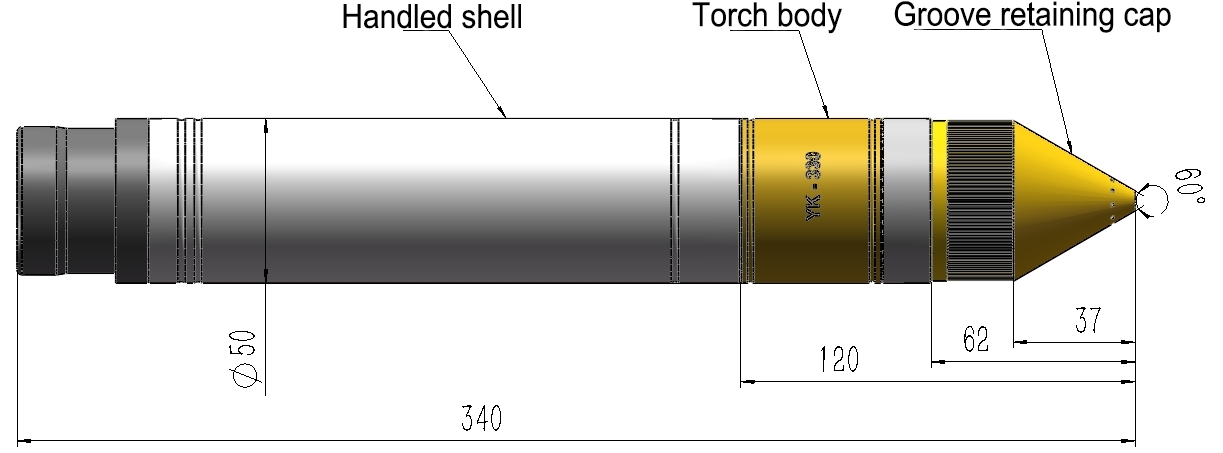

2)The YK330P (Groove cutting) torch size:

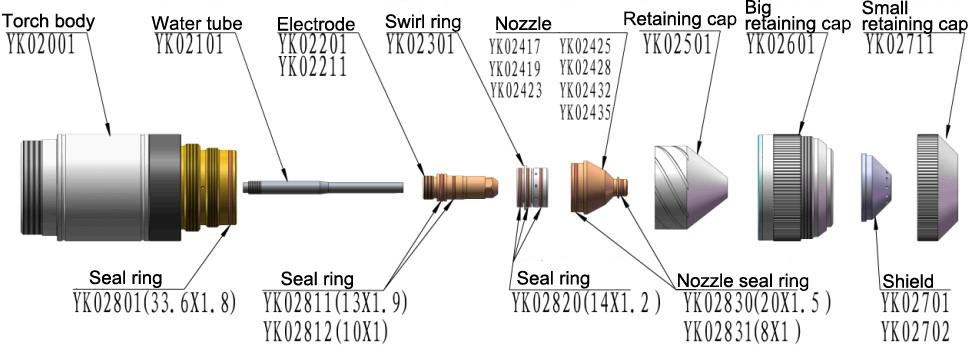

3)The consumables name and series No.:

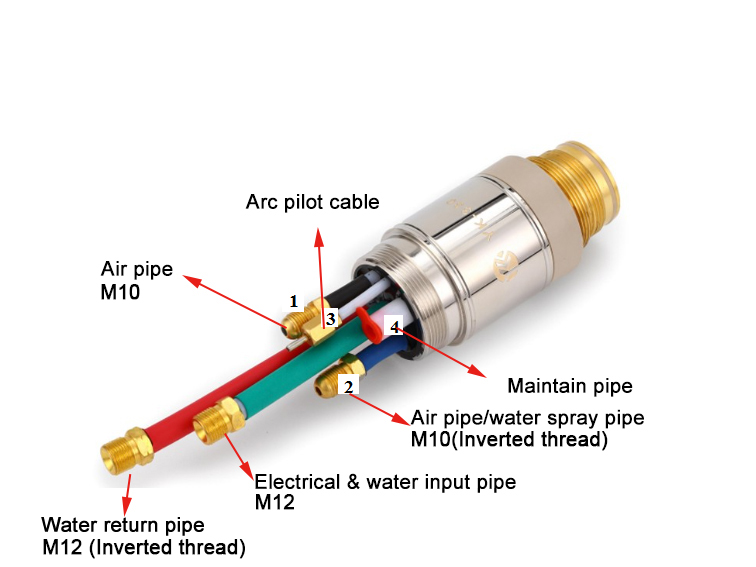

4) The torch interior connector size:

                                                                                  YK330 plasma torch and consumable:

Steps for inspecting and replacing torch consumables:

1.Turn off the plasma cutting power switch and ensure the torch cooling system of the plasma power supply has stopped working.

2.Remove the consumable parts from the torch body and check for worn or damaged components. After removing the consumable parts, they must be placed on a clean, dry, oil-free surface. Dirty consumable parts may cause torch malfunction.

3.If the consumable parts are worn or damaged, replace them. Please refer to the "Installing Consumables and Wear Parts" section in the consumable replacement process image above.

4.After installing the consumable parts, ensure the torch is perpendicular to the workpiece. Then, first turn on the plasma power supply and open the test gas switch on the control panel for about ten seconds. At this time, the gas from the torch head can blow away any moisture remaining in the nozzle and swirl ring. Close the test gas switch, and finally turn on the cooling water tank. Once the water flow indicator light on the plasma control panel illuminates, normal cutting operations can proceed.

Instruction for use:

1. Properly install the water inlet/outlet, gas lines, and high-frequency cable according to the power supply requirements. Pay special attention to the water flow direction; incorrect connection may result in reduced water flow and pipeline blockage.

2.The lower middle part of the outer casing is the clamping area. Insulating components must be present at the clamping point to prevent the casing from connecting to the ground.

3.Before cutting, check the gas and water supply to ensure stable gas and water pressure within the allowable range. The gas must be clean and dry; the coolant must be free of suspended particles and other impurities, with temperature and flow rate within the allowable range.

4.Install the electrode, nozzle, and other components in the correct order. Apply lubricating grease to the sealing rings, check that the silicone seals are intact, inspect components for signs of wear, and replace or repair them promptly if necessary.

5. In the event of gas leakage, water leakage, failure to initiate the arc, reduced cutting quality, excessive component wear, or similar issues, contact the equipment maintenance personnel promptly. Do not operate the equipment while it is faulty.

YIKUAI factory introduce:

About YIKUAI Plasma torch and consumable: YIKUAI brand

WUHAN XINGHUAYUAN WELDING AND CUTTING EQUIPMENT CO.,LTD.

Established in 2007 year, site in Wuhan East & West economic development area which as t he central city of China. As the big power plasma source sales、plasma torch’s research、design、producing and marketing technology innovation enterprise.

The YK plasma torch and consumable “YIKUAI” as company independent research and development brand, which got better performance、more efficient during the develop and upgrade in the practical application. Our YK plasma torch and consumable have highly competitive in domestic market, and get the majority customers accepted and widely praise.

We believe the ‘altruism’ thinking, and willing to cooperation with domestic and abroad friends to create the plasma cutting industry’s better future.

YIKUAI plasma torch and consumable products:

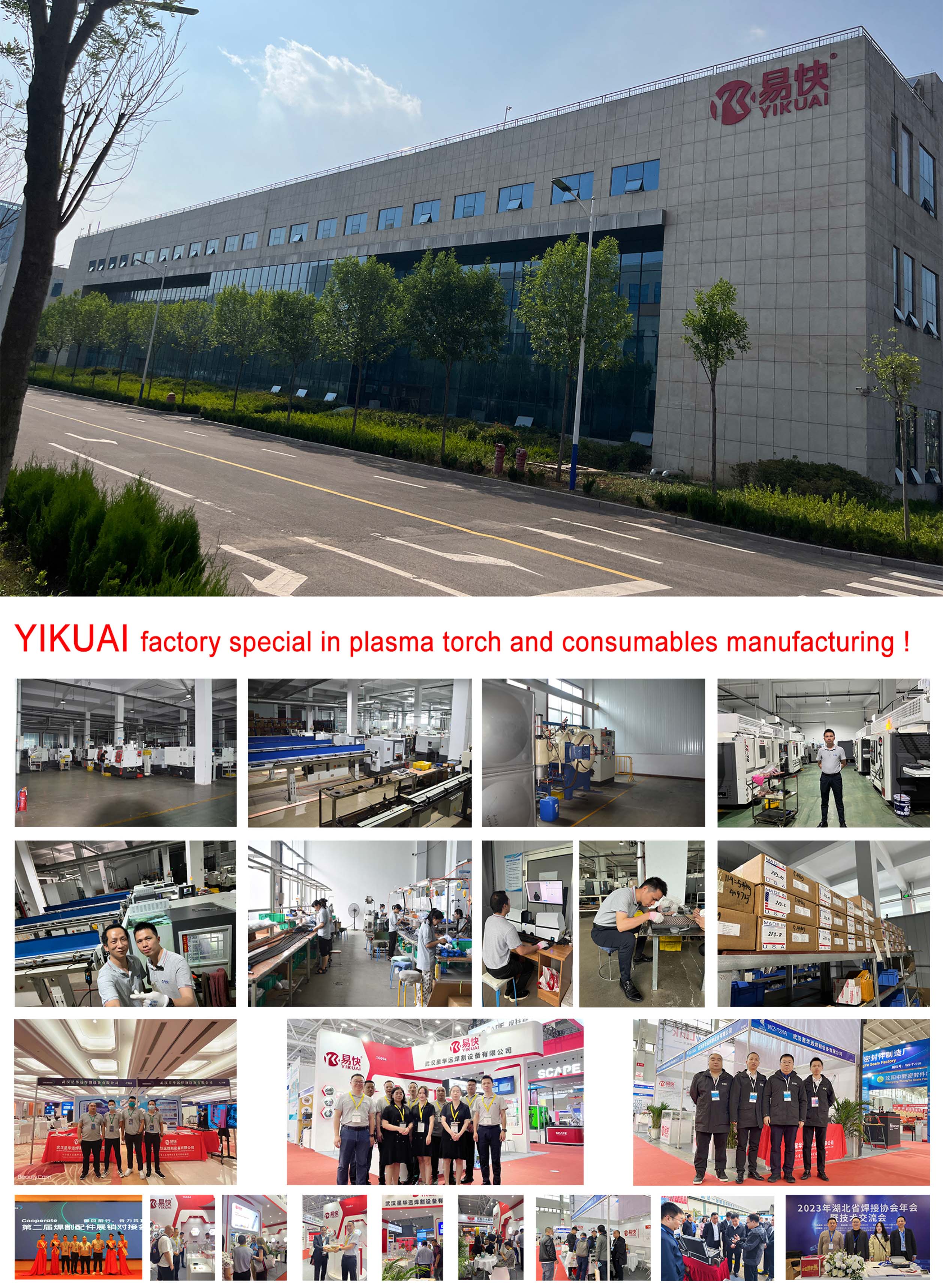

YIKUAI Plasma torch and consumable workshop:

YIKUAI Plasma torch and consumable certification:

YIKUAI plasma torch and consumable packing:
